K Array Thunder KS1PI Ultra Light High Power Subwoofers
K Array Thunder KS1PI Ultra Light High Power Subwoofers
Home Audio Subwoofer
Add to cart
K Array Thunder KS1PI Ultra Light High Power Subwoofers
K Array Thunder KS1PI Ultra Light High Power Subwoofers
K Array Thunder KS1PI Ultra Light High Power Subwoofers
K Array Thunder KS1PI Ultra Light High Power Subwoofers
K Array Thunder KS1PI Ultra Light High Power Subwoofers
K Array Thunder KS1PI Ultra Light High Power Subwoofers
K Array Thunder KS1PI Ultra Light High Power Subwoofers
In stock

K Array Thunder KS1PI Ultra Light High Power Subwoofers

Categories: , Tags: , Brand: K Array

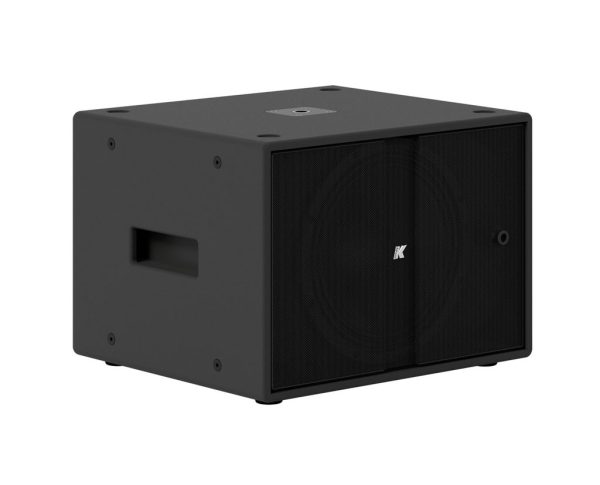

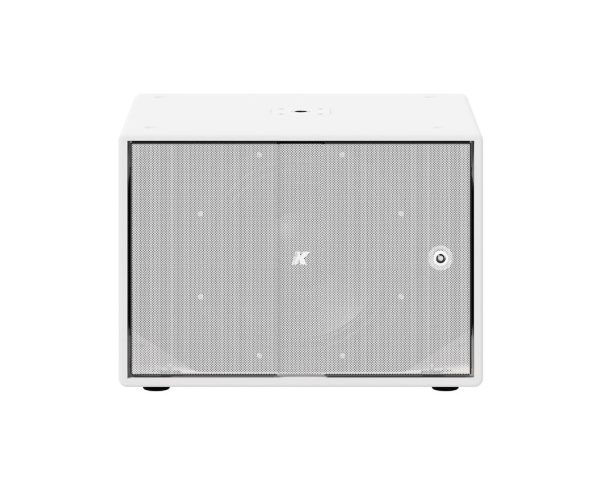

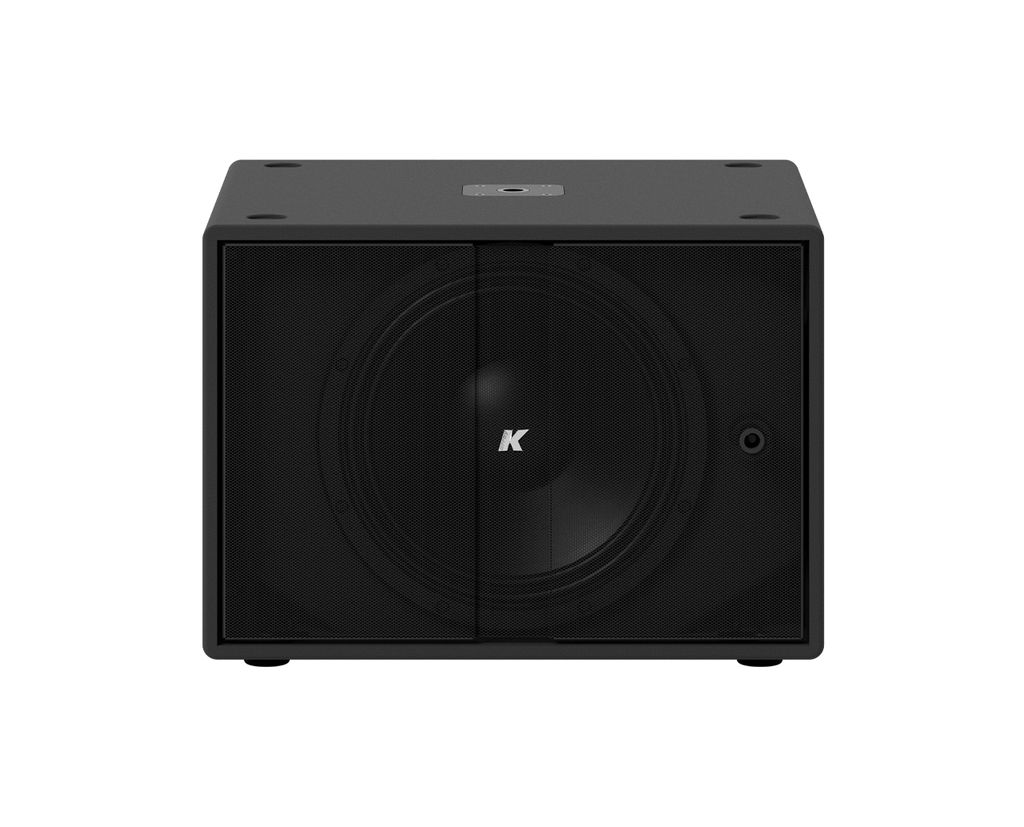

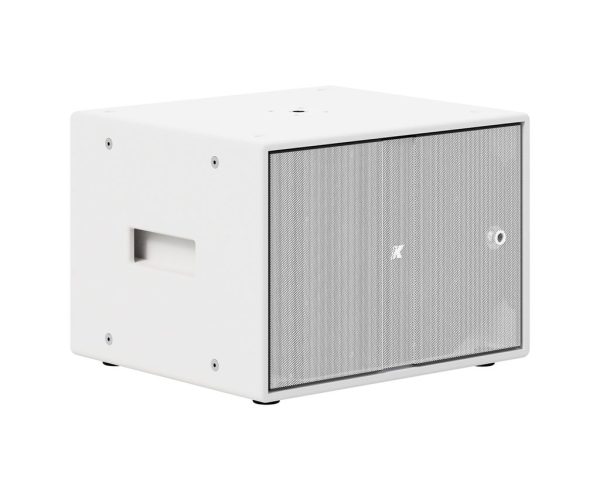

The Thunder-KS1P I is a compact passive subwoofer



Kindly contact +60 12-313 5699 @ +60 16-431 8688 for further assistance

  • Description
  • Reviews (0)

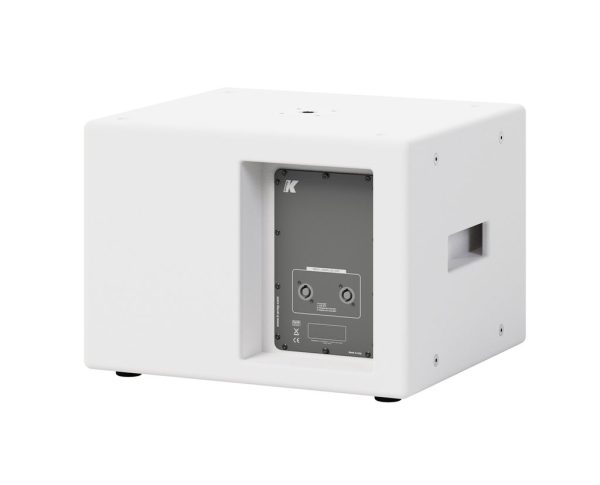

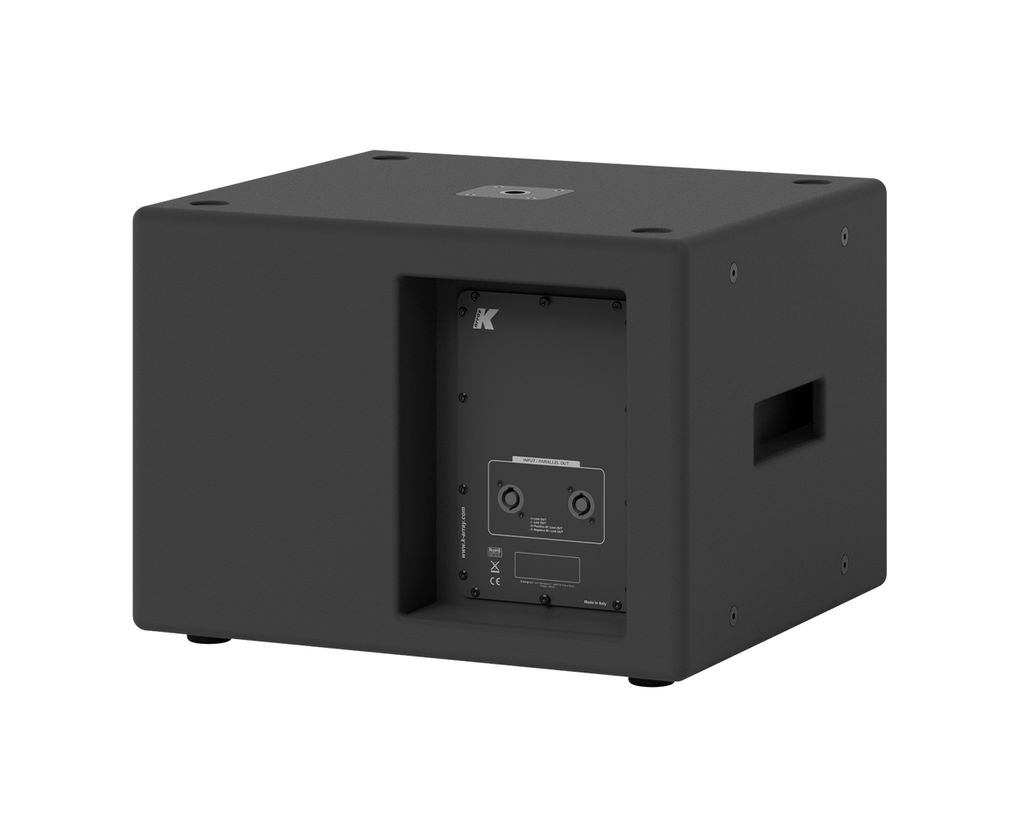

The Thunder-KS1P I is a compact passive subwoofer featuring a long excursion 12” cone driver with 3” voice coil. The Thunder-KS1P I features 2x SpeakON NL4 connectors that allow to input the signals from external active systems or amplifiers, with either a 2-wire or a 4-wire cable, as well as route the signal to other loudspeakers.

STRIKE THE PERFECT AUDIO BALANCE

Combined with the unique audio solutions of K-array, add exceptional lows to your frequency range for live sound events with a choice of five subwoofer models from the Thunder series present in both active and passive electronic versions.

GIVING YOU ULTIMATE
SOUND CONTROL

Simply combining two or more subwoofers to obtain a configuration that guarantees cardioid diffusion even throughout the low frequencies promises to give you a cleaner sound on stage, minimise risk of acoustic feedback, and in general a greater control over sound design the way you want it.

Specifications

General

  • Type:  Passive subwoofer

  • Transducers:  12" neodymium magnet woofer

  • Frequency Response:  35 Hz - 150/450 Hz (-6 dB) crossover dependant (1)

  • Crossover:  External DSP-controlled,

    Low Pass @ 150 Hz up to 450 Hz, preset dependant

  • Max SPL:  134(2)

  • Rated Power:1200W peak

  • Coverage:  Omni

  • Coverage:  2 x Speakon NL4

  • Nominal Impedance:8ohm

  • Disclaimer:Passive loudspeakers requires dedicated preset loaded on board of K-array amplifiers.

  • Disclaimer:  New materials and design are introduced into existing products without previous notice.

Handling and Finishes

  • Dimensions (W x H x D):  500 x 350 x 440 mm

    (19.7 x 13.8 x 17.3 in) (3)

  • Weight:  18 kg (39.7 lb)

  • Material:Polyurea coated birch plywood

  • Colors:Black/White/Custom RAL

Regulations

  • IP Rating: 54 (5) (4)

Amplifier

  • Amp Module:  -

  • Output Power:  -

  • Power Consumption:  -

  • (1) With dedicated preset
  • (2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 1 m.
  • (3) Included 17 mm (0.7 in) removable rubber feet
  • (4) In case of permament, long lasting installation in critical environments (swimming pools, beaches, yachts..), we recommend to further protect the subwoofer. Contact K-array directly to discuss best protection practices.
